CONTROL UNITS FOR ADHESIVE APPLICATION

Robatech control units are suitable for controlling application heads for cold glue and/or hot melt adhesive. The AS 50 and AS 60 control units ensure a fast response time for pneumatic application heads by briefly overexciting the solenoid valve voltage when switched on. This allows the production speed in the adhesive application to be significantly increased. The remote pattern controls can be easily integrated into higher-level systems via standardized interfaces.

PATTERN CONTROL AS 30

The pattern control system AS 30 can individually control up to four application heads. The application patterns are programmable. Operation is via the robust membrane keypad. The control is particularly suitable for cold glue application or combined application of cold glue and hot melt adhesive.

ADHESIVE PATTERN CONTROL AS 50 WITH APPLICATION MONITORING

Adhesive pattern control AS 50 with pattern monitoring by Robatech

The control unit AS 50 can control up to four application heads. Pattern monitoring for verifying the application position and presence of cold glue or hot melt adhesive application is integrated in the control. The AS 50 is operated either via the membrane keypad or the touch panel with RobaVis user interface.

MODULAR PATTERN CONTROL AS 60

The expandable adhesive pattern control AS 60 consists of a basic module for controlling up to 8 application heads. A maximum of 15 base modules can be connected in series via bus cables. The AS 60 is therefore particularly suitable for adhesive application systems with numerous application heads. The individual control allows the application to a wide variety of formats or to formats with complex application patterns such as are typical in paper sack production. Several application heads can be controlled via one channel.

A terminal with membrane keypad or with touch panel and RobaVis user interface is available for operating a basic module.

Optionally, a basic module can be combined with an pattern monitoring module. This allows the application position or the absence of beads and dots to be reliably verified using sensors.

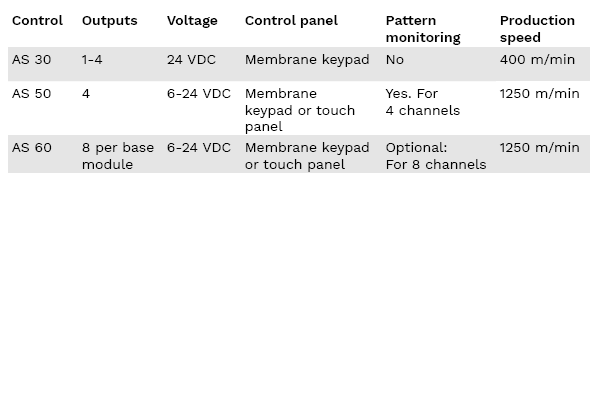

CONTROL UNITS FOR ADHESIVE APPLICATION AT A GLANCE

Table-control-units-en
